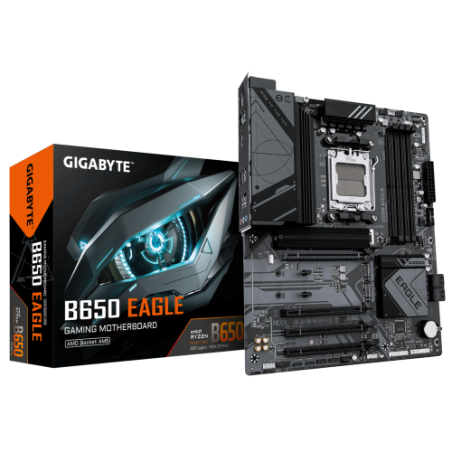

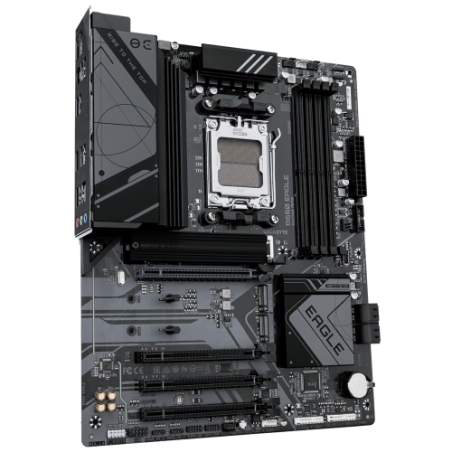

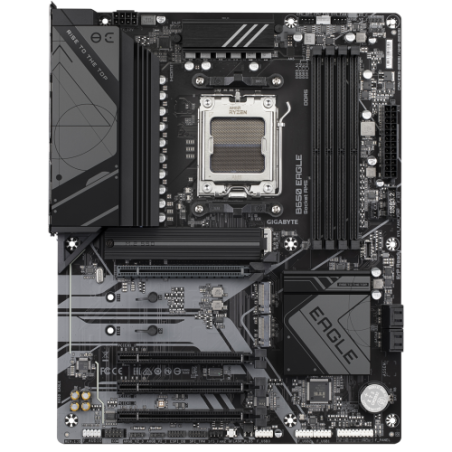

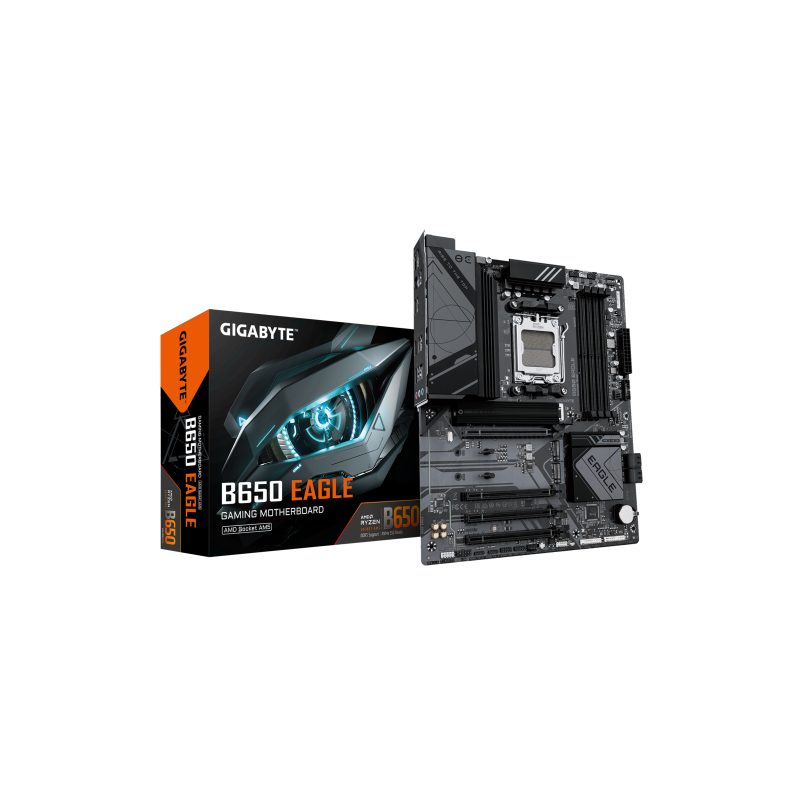

GIGABYTE B650 EAGLE Rev.1.0 4xDDR5 3xM.2 DP HDMI Type-C AM5 Soket Gaming Anakart

TÜKENDİ

CPU Platform:	AMD
Chipset:	AMD B650
CPU Yuva Yapısı:	AMD AM5
RAM Desteği:	DDR5
RAM Yuva Adeti:	4 ADET
Kasa Uyumu:	Micro ATX
HDMI:	VAR
Display Port (DP):	VAR
Kablosuz Bluetooth:	YOK
Kablosuz Wi-Fi:	YOK
Type-C:	1 adet

Gigabyte B650 EAGLE DDR5 7600MHz (OC) M.2 HDMI DP 1GbE Lan ATX AM5 Anakart

AMD Socket AM5: Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Eşsiz Performans: 12+2+2 Phases Digital VRM Solution
Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage: 1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch: PCIe x16 Slot with Quick Release Design
Fast Networks: GbE LAN
Extended Connectivity: DP, HDMI, Rear USB® 10Gb/s
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

TEKNİK DETAYLAR & DONANIM

Gigabyte B650 Anakart Spesifikasyonları

CHIP

Yongaseti

AMD B650

RAM

Bellek

Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Çift kanal bellek mimarisi

ECC olmayan DIMM 1Rx8/2Rx8/1Rx16 hafıza modüllerini destekler

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTEs website for more information.)

GPU	Dahili Grafik

Birleşik Grafik İşlemcileri

1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.

Maksimum 4096x2160 @ 60 Hz çözünürlüğü destekleyen 1 x HDMI bağlantı noktası
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

I/O

Ses & LAN

Ses Desteği:
Realtek® audio codec
HD Ses Desteği
2/4/5.1/7.1-kanal
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN:
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

PCIe	Genişleme Yuvaları

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU

AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)

2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1

The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used.

1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1

M.2	Depolama Ara yüzü

1 x M.2 connector (M2A_CPU):
AMD Ryzen™ 7000/9000: PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 (Phoenix 1/2): PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2P_CPU):
- AMD Ryzen™ 7000/9000: PCIe 4.0 x2 SSDs
- AMD Ryzen™ 8000 (Phoenix 1/2): PCIe 4.0 x2 SSDs

1 x M.2 connector (M2C_SB):
PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s konnektörü
RAID 0, RAID 1, and RAID 10 (NVMe & SATA)

USB	USB Arabirimi

İşlemci:
2 x USB 3.2 Gen 2 Type-A (red) (arka panel)
1 x USB Type-C® (USB 3.2 Gen 1) (arka panel)
4 x USB 2.0/1.1 (arka panel)

Yongaseti:
2 x USB 3.2 Gen 1 (dahili başlık)
1 x USB Type-C® (USB 3.2 Gen 1) (dahili başlık)
4 x USB 2.0/1.1 (2 arka, 2 dahili)
4 x USB 2.0/1.1 (dahili başlık)

G/Ç	Bağlantı Noktaları

Dahili: 24-pin ATX, 8-pin ATX 12V, CPU Fan, 2x Sistem Fan, 3x Adreslenebilir RGB Gen2, 1x RGB LED, 1x Ön Panel Ses, 1x Q-Flash Plus button, 1x Clear CMOS.

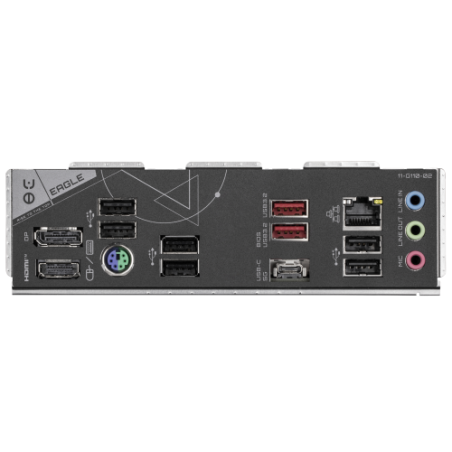

Arka Panel: 1x DisplayPort, 1x HDMI, 1x PS/2, 2x SMA Anten, 1x USB Type-C®, 2x USB 3.2 Gen 2, 6x USB 2.0, 1x RJ-45, 3x ses jakı.

SYS	BIOS & Yazılım

1 x 256 Mbit flash
Lisanslı AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Diğer: GIGABYTE Control Center (GCC), Q-Flash Plus, Norton® Internet Security.

OS	İşletim Sistemi & Yapı

Windows 11 64-bit / Windows 10 64-bit desteği

Form Faktör:
ATX Form Faktör; 30.5cm x 24.4cm

SIZE	Form Faktör

ATX Form Faktör; 30.5cm x 24.4cm

Tüm teknik veriler üretici tarafından sağlanan güncel bilgilerdir.
